The company’s pet food machinery includes a series of practical and cost-effective professional equipment such as a mixed feeding system, a puffing extrusion system, a drying system, a spraying system, and a cooling system. So as to ensure a wide range of raw materials to meet the characteristics of product variety, delicate beauty, and comprehensive nutrition.
The fine cat and dog food production line endows pet food with unique shapes, tastes and colors, and adapts to the ever-developing pet food market with features such as scientific nutritional ratio and easy digestion. Reasonable structure design, special material and self-cleaning performance ensure the stability of the machine and make maintenance easier. The operation is simple and easy to learn, and accurate parameter control ensures that the pet food is completed in a specific temperature, pressure, humidity and time.

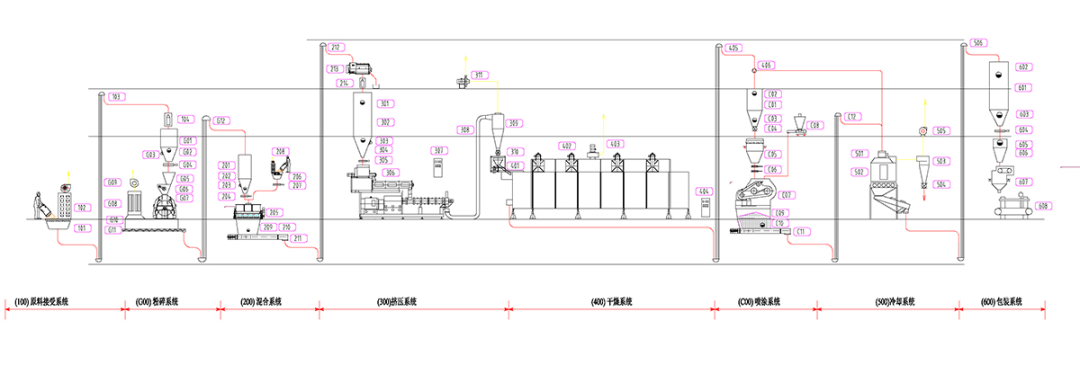

Process flow
Ingredients → mixing → crushing → puffing extrusion → drying → spraying → cooling → packaging
Equipment introduction
Model：AYT95
main motor power：110KW Power requirements：380V 50Hz
The main motor, feeding motor and rotary cutting motor are all controlled by inverter
Electric device brand
Main motor: Siemens, inverter: Delta, relay: Omron, MCB; LG (Korea)
Yield:2000-2500KG/H

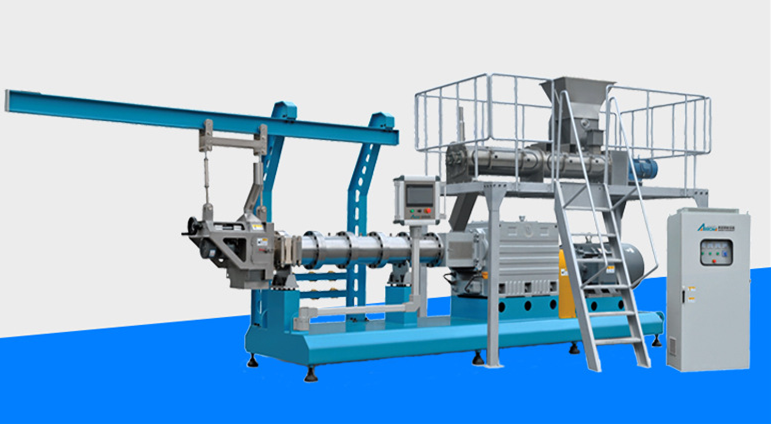

AYT series twin-screw extruder relies on 20 years of experience in pet and aquatic feed processing equipment, combined with international advanced twin-screw extrusion technology, research and development of concentrated feed extruder equipment. The equipment consists of four parts: feeding bin, feeder, conditioner and extruder. The mixed materials enter the feeding bin, and the materials in the feeding bin are uniformly and continuously fed into the dual-axis differential conditioner for conditioning through the feeder.The bottom of the conditioner has a steam inlet, and the top of the conditioner has a liquid addition port, which can add necessary liquid to the conditioner. After the material has been tempered in the conditioner for a period of time, it enters the extrusion cavity through the feed port, and the material is gradually matured or melted through the action of screw conveying, compression, stirring, and shearing; finally, the material is subjected to pressure and temperature in the curing area. Further maturation, fat, protein, starch, etc. change, and finally extruded through the die mouth, and cut into shape by the cutting system.
