Extrusion is the core, which ensures the best extrusion and curing effect.
1.Host details
(1) PLC control, electrical and control components adopt international brands ABB, Siemens, Delta
(2) The cavity is a combined building block design. It is very flexible and convenient to increase (or decrease) the cavity. The cavity sleeve is lined with wear-resistant alloy materials. The heating (cooling) medium of each cavity operates independently, and the temperature is controlled independently.
(3) The gearbox has high torque and high precision, and the life of main components is more than 50,000 hours.
(4) The screw is a building block structure, and the material is a special alloy with high strength and high wear resistance, which can be replaced flexibly, and different products can be produced according to different combinations.
Drying is the key to maintain the complete shape and good taste.
1.Microwave drying equipment
(1) Microwave heating is to use the heat generated by the energy consumed by the electromagnetic field of the dielectric material itself to generate heat. When it generates and touches objects, it is not a hot gas, but electromagnetic energy. It has a series of unique advantages that traditional heating does not have.
(2) Microwave technology utilizes the radiation conduction of electromagnetic energy. The microwave energy is transmitted to the inside of the material and absorbed by moisture and instantly converted into heat energy, generating violent vibration of molecules, obtaining kinetic energy, and realizing the vaporization of moisture.
(3) Using the unique performance of microwaves, the moisture content of the newly prepared rice grains is reduced to a level suitable for preservation.

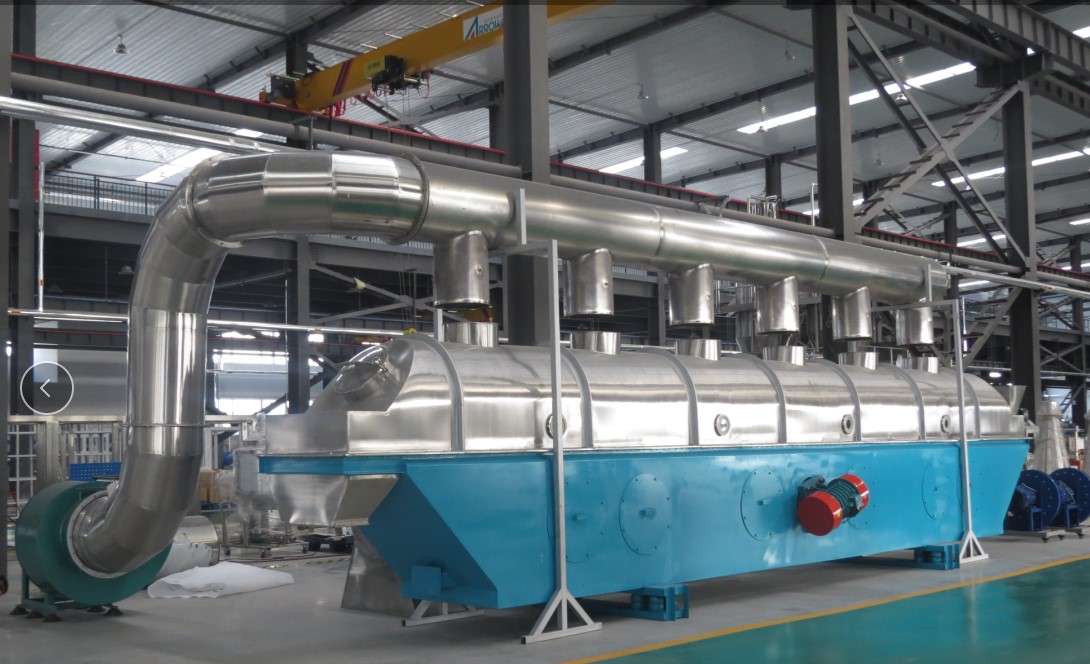

2.Vibrating fluidized bed
(1) The damage to the surface of the material is small. Can be used for drying fragile materials.
(2). The fluidization is uniform, without dead space and blow-through phenomenon, and uniform drying can be obtained.
(3) Good adjustability and wide application. The thickness of the material layer, the speed of movement in the machine and the change of the full amplitude can be adjusted steplessly.
(4) It adopts a fully enclosed structure. Effectively prevent cross-infection between materials and air, and the working environment is clean.
(5) The material enters the machine from the feeding port. Under the action of the vibration force, the material is thrown forward and continuously moves in the horizontal direction. After the hot air passes through the fluidized bed and exchanges heat with the wet material, the dry material is discharged from the discharge port.

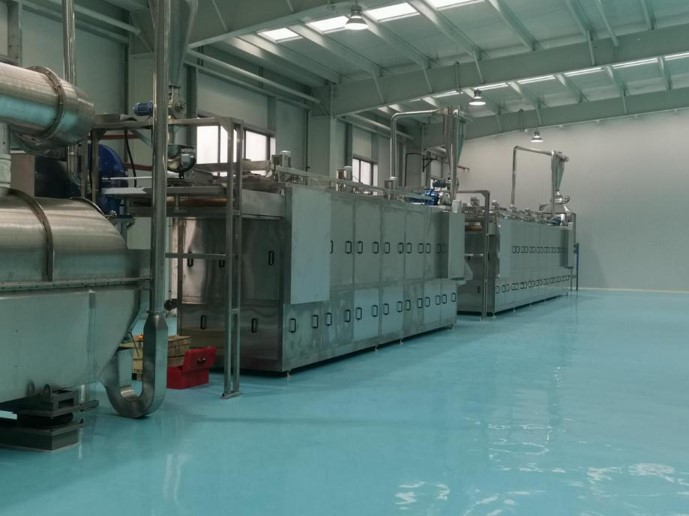

3.Continuous belt dryer
(1) External air circulation system, high efficiency and low energy consumption.
(2) Heating method: steam, gas, electricity
(3) Frequency conversion speed regulation, baking time and temperature can be adjusted
(4) Drying at low temperature can better retain the nutrients contained in rice grains, such as vitamins and minerals.
