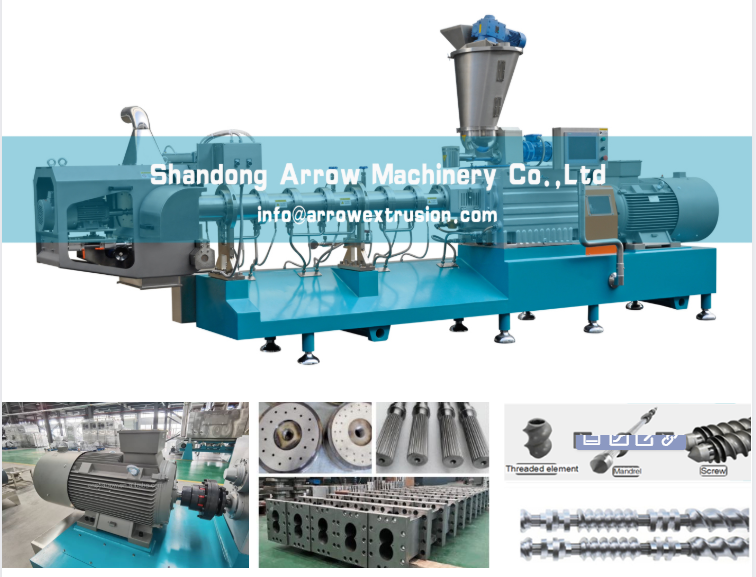

The double screw extruder is our high-end model developed on the basis of Swiss technology, and it is multifunctional. Our extruders applied to many products, such as our extruders are used in the production of many products, such as pellets, puffs, pet food, fish feed, corn flakes and breakfast cereals etc.
|
Main equipments Description |
||
| model | installed power |
output |
| AHT62 |
75KW |
100-350kg/H |
| AHT72 |
110KW |
200-700KG/H |
| AHT95 |
200KW |
800-1200KG/H |
(1) Siemens-China Main Motor
(2) The screw adopts fully engaged model, designed by 3D design, CNC machining,smooth surface, high conjunction accuracy,and better self-cleaning function,
changing parts flexibly.
(3) The screw and barrel adopt a combination modular structure, which can be assembled in any combination to meet different formulas and product
requirements.
(4) The screw and barrel are made of special alloy with high strength and high wear resistance.

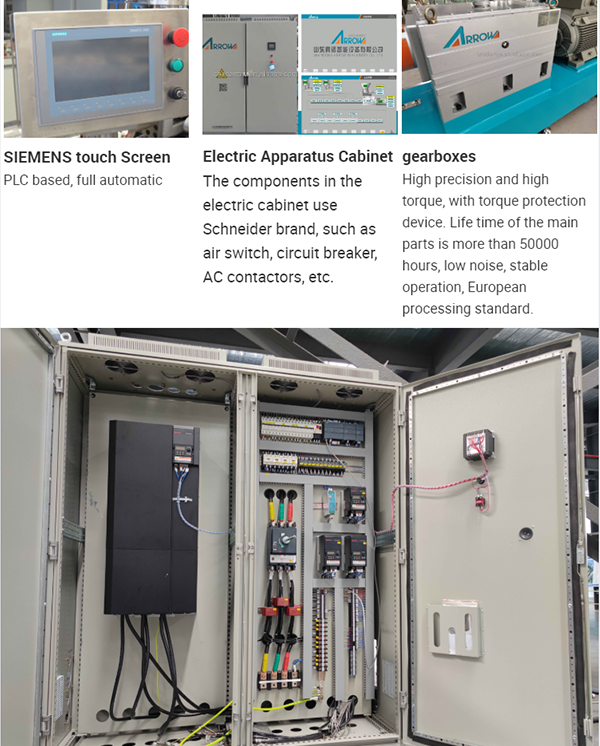

Bosch brand lnverter, siemens brand PLC and Touch Screen and otherschneider Electric Device.
controlled by inverter(Communicated with PLC),with high accuracy controlling,easy adjustment, PID controlling, RS485 communication, Noise filter, monitoring display.
If you need any detailed requirements, please do not hesitate to contact me.
SHANDONG ARROW MACHINERY CO., LTD
